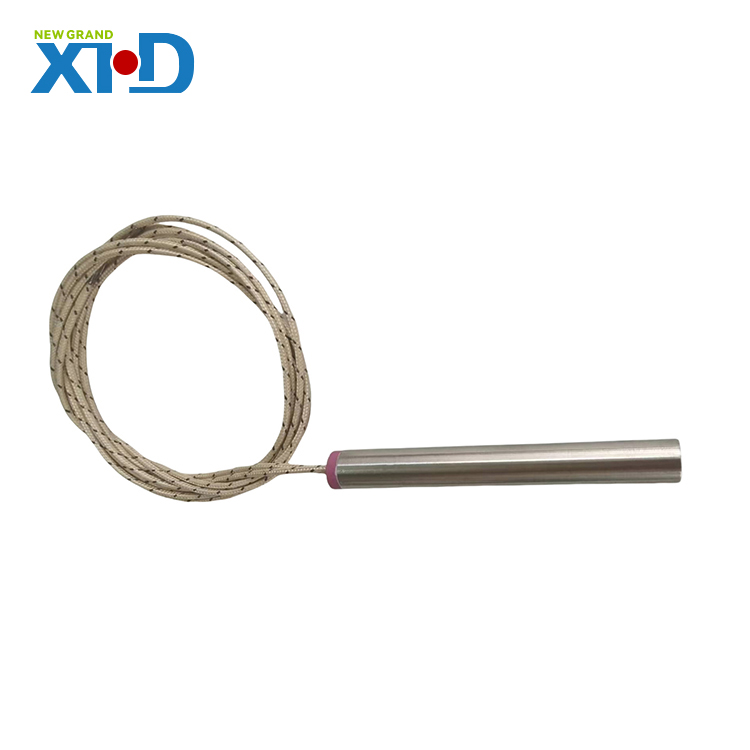

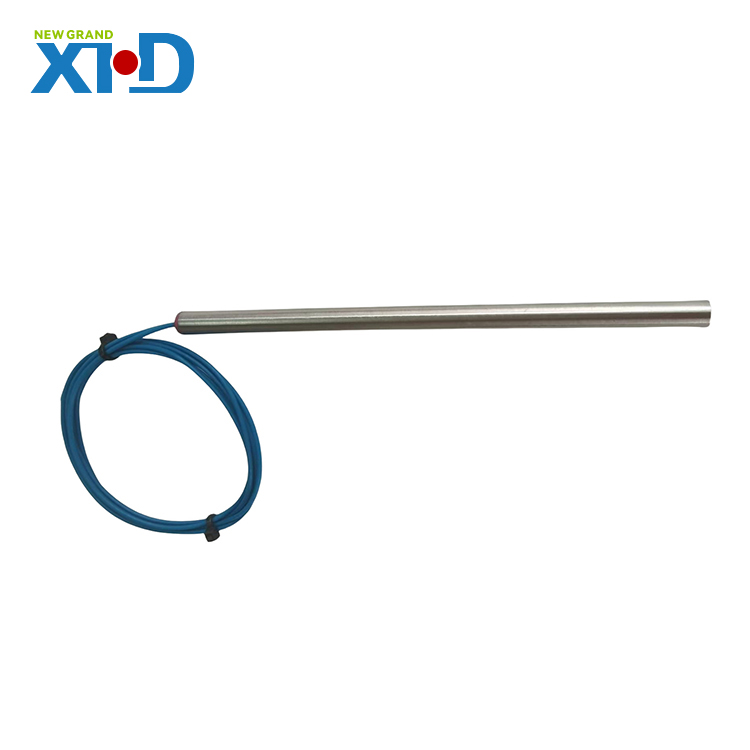

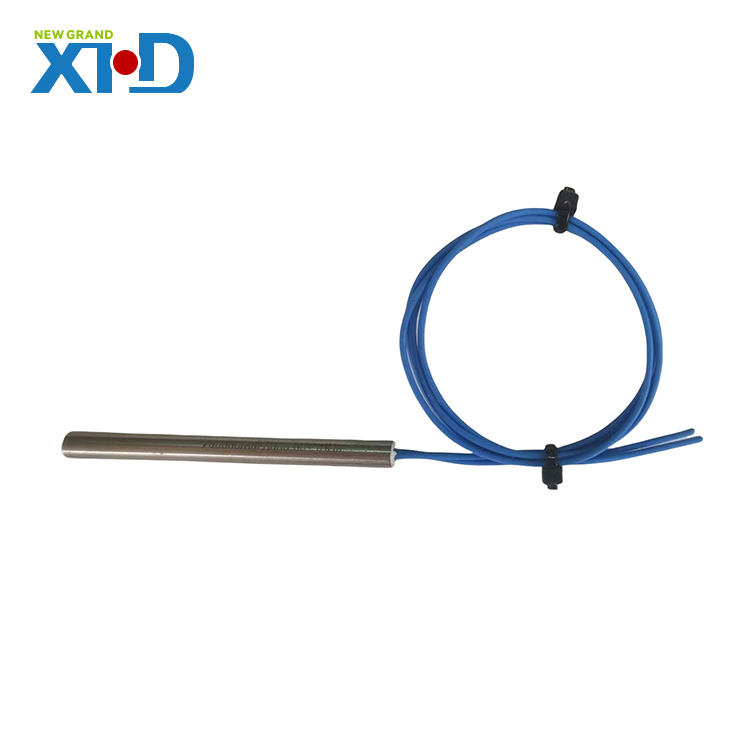

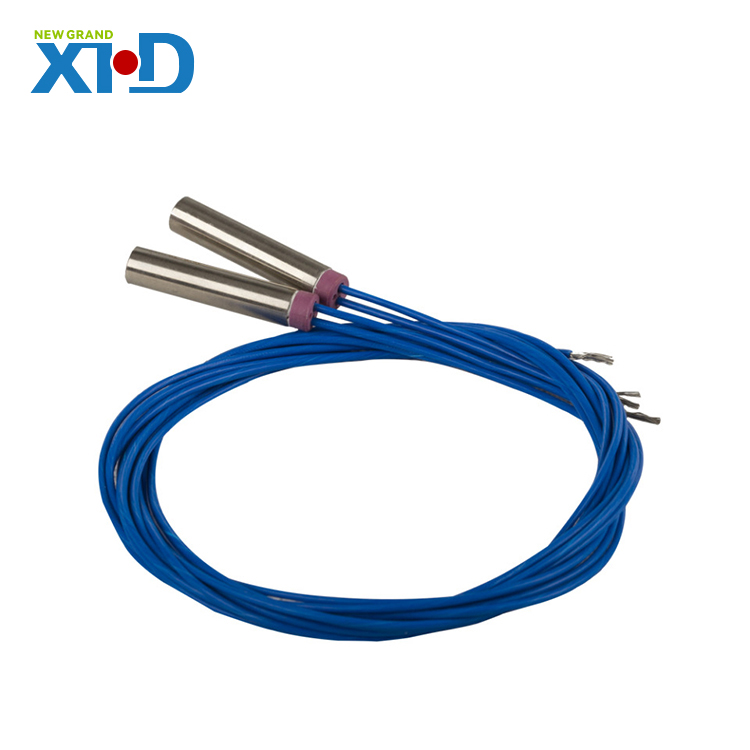

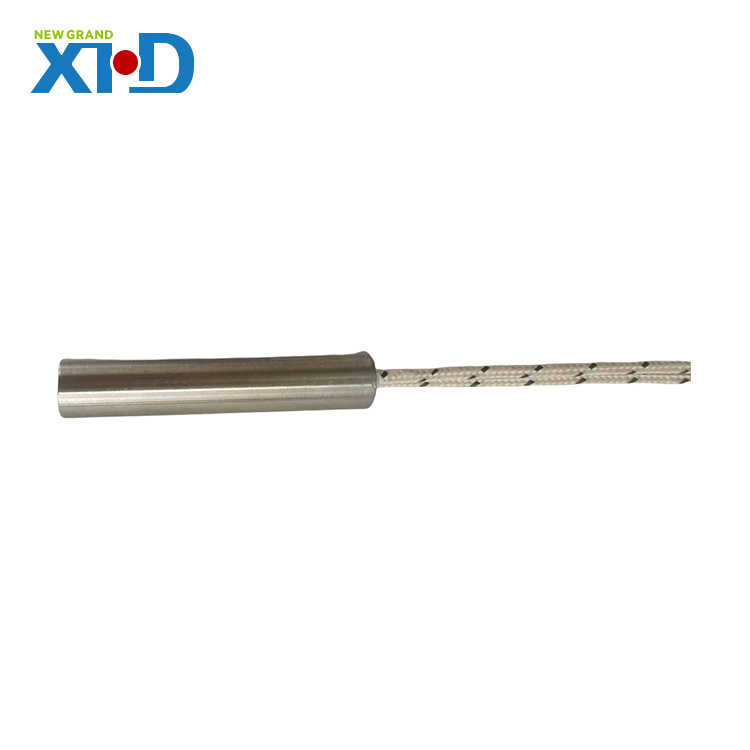

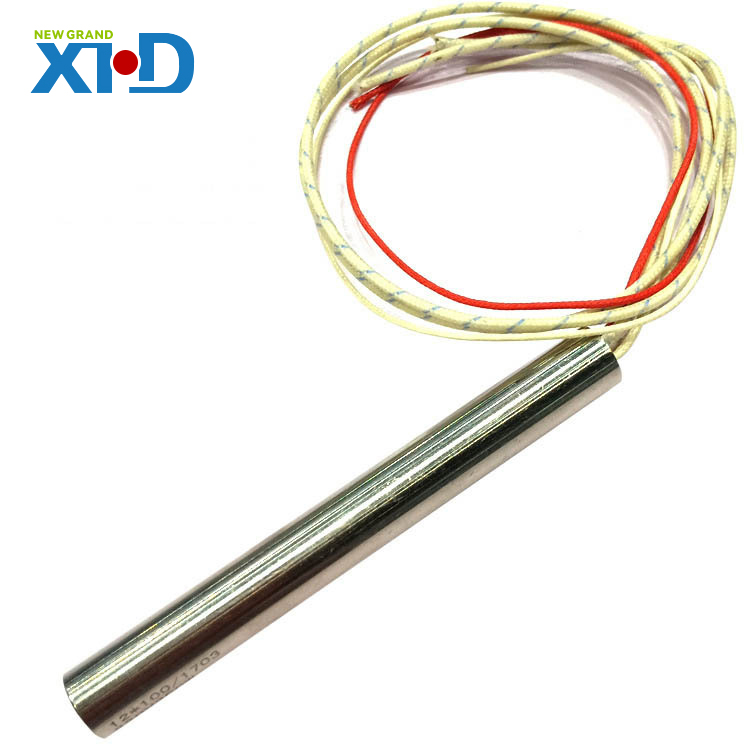

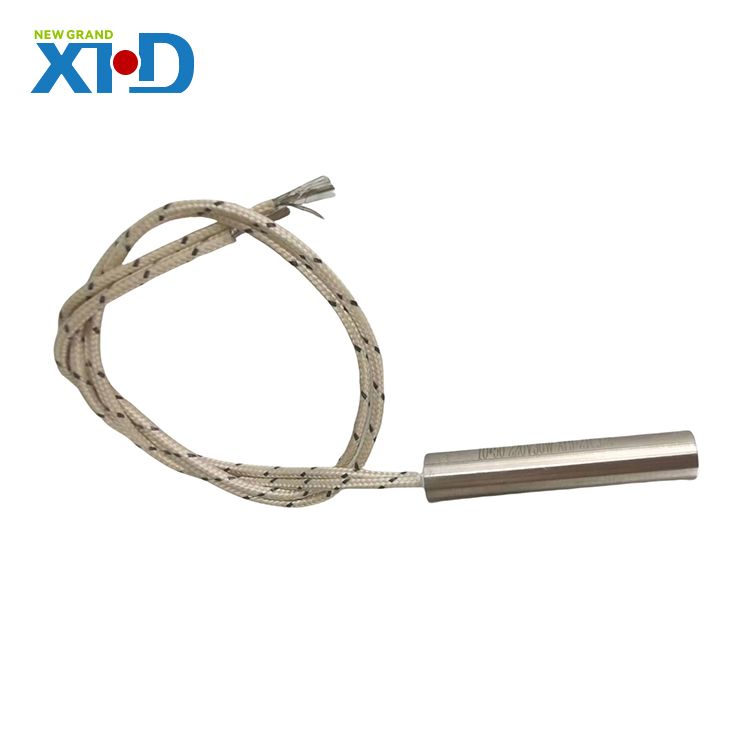

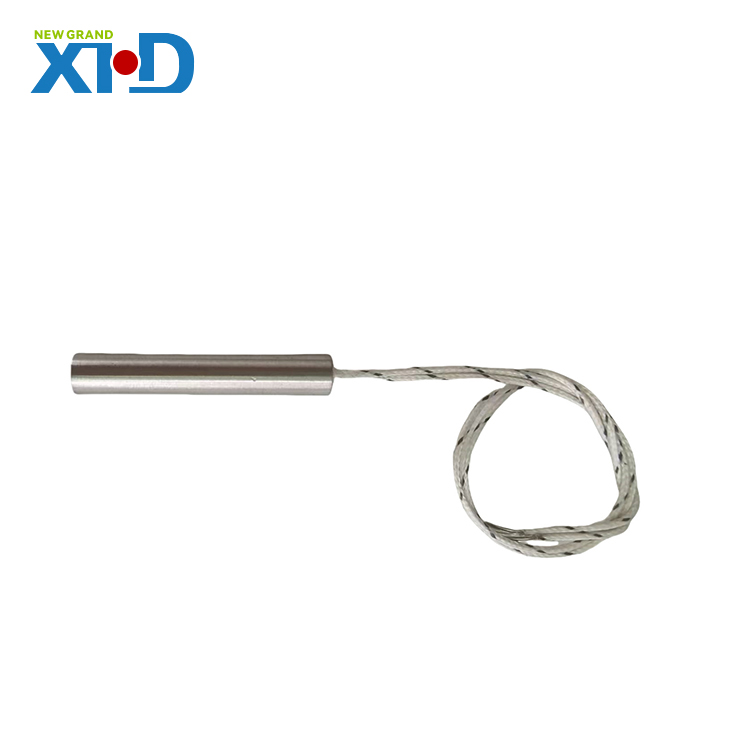

Internally Wired Cartridge Heater is an electric heating element designed for specific heating applications. Its uniqueness lies in the structural design of internal wiring, which makes the wiring part of the heating tube more concealed and safer. At the same time, the single-head heating feature also makes it perform well in local heating or occasions requiring precise temperature control. Whether in industrial, commercial or domestic environments, Internally Wired Cartridge Heater can provide stable and reliable heating effects.
1.Internal wiring design:The wiring part is hidden inside the heating tube,which makes the appearance more neat andsafer to use.
2.Single-end heating:Only one end is heated,while the other end remains cool,energy is concentrated,and the heating efficiency is high.
3.High-quality materials:Using high-quality stainless steel or titanium alloy as the outer shell,filled with high-performance insulating materials and high-temperature resistant heating wires.
4.Precise temperature control:With advanced temperature control system,precise temperature regulation and control can be achieved.
5.Easy to install:The compact design makes the heating tube easy to install and adapt to various space restrictions.
6.Long-lasting and durable:High-quality materials and craftsmanship ensure the long service life of the heating tube.
1. Shell material: Stainless steel 304, stainless steel 321, titanium alloy, etc., can be selected according to the working environment and temperature.
2. Heating wire material: high-quality nickel-chromium alloy or iron-chromium-aluminum alloy, to ensure heating effect and stability.
3. Insulation filler: high-temperature insulating magnesium oxide powder, to ensure the insulation performance of the Internally Wired Cartridge Heater at high temperatures.
4. Internal wiring: high-temperature resistant and corrosion-resistant alloy wire is used to ensure the reliability and safety of the wiring part.
5. Rated voltage: 110V, 220V, 380V, etc., can be customized according to customer needs.
6. Power range: 100W-2000W, the specific power can be customized according to customer requirements and heating tube size.
7. Tube diameter: It can be customized according to customer requirements, and common specifications are Φ6mm-Φ25mm.
8. Length: It can be customized according to customer requirements to meet different heating needs.
9. Factory inspection standard: The cold insulation resistance is not less than 50MΩ, and the insulation resistance after long-term storage or use after the sealing test is not less than 1MΩ.
Internally Wired Cartridge Heater is widely used in the fields of local heating, mold heating, hot plate heating, etc. in industrial production lines. Heating elements such as coffee machines, water dispensers, and water heaters in commercial equipment. Heating equipment such as electric kettles, electric cups, and electric ovens in home environments.
